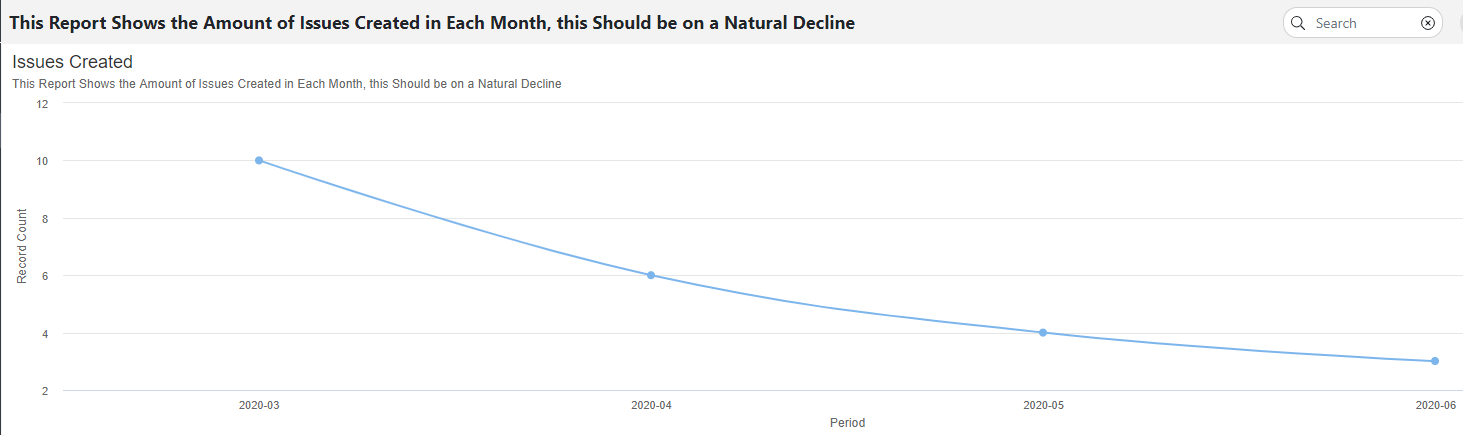

Spline Charts are best used when examining trends in data over a time series. Ultimately it serves the same function as a line graph, only with the distinction of data points being joined by a smooth trend line, and not point-to-point.

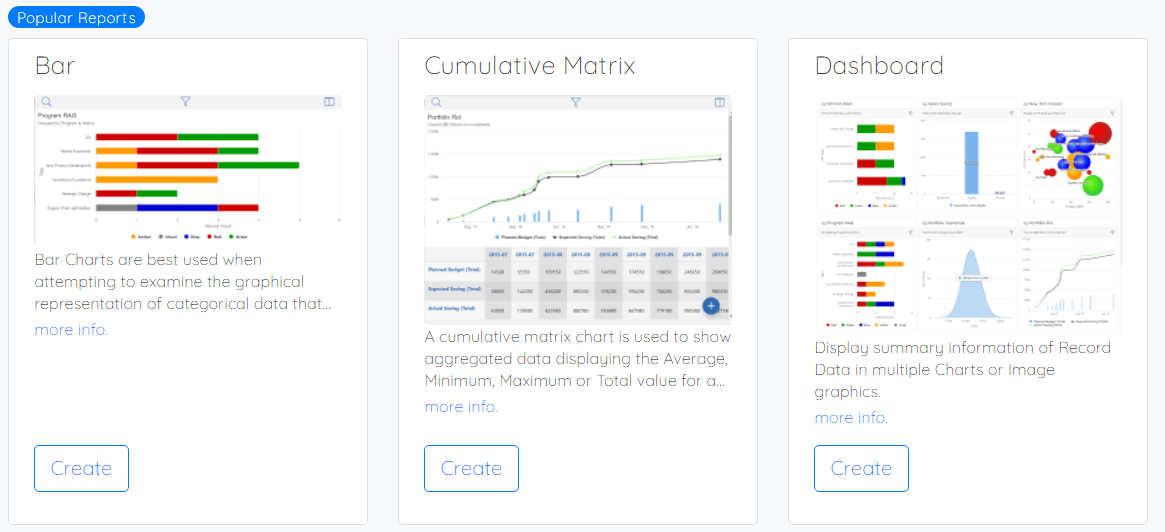

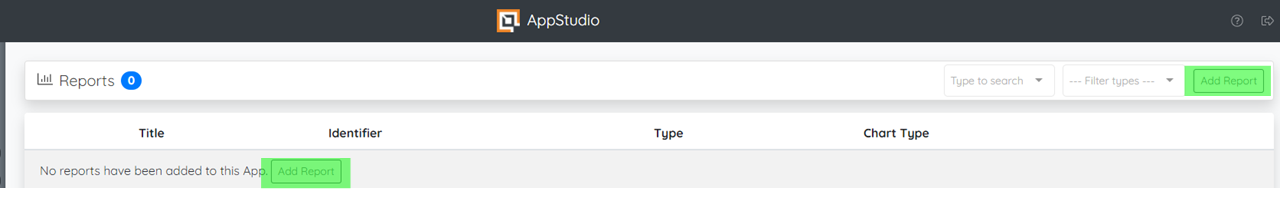

To generate a Spline Chart, you first need to be in the 'Reports' section where you will then be able to click 'Add Report' in at least one of the highlighted locations below.

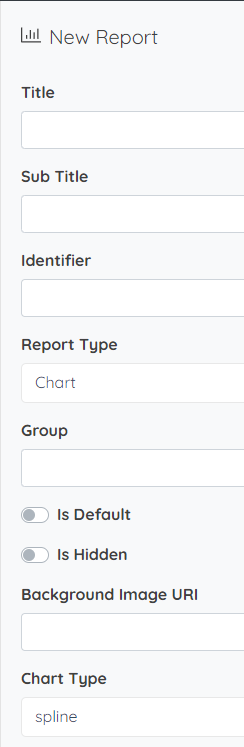

Consequently, this presents you with the Report configuration options below:
Title: The title is the reference to the Report that will appear in the App for the users. It will appear in the left pane menu for the and also in the breadcrumb (header bar) at the top of the page which tells the user where they are on the site.
Sub Title: The subtitle is a banner that appears at the top of the screen beneath the title that allows you to give a short description the report, this can be useful for keys and user audience.
Identifier: This should reflect the label. The identifier is a system ID for referencing a Report. This ID must be unique per Report and must contain only letters and numbers starting with a letter. It must also be a minimum of three characters.
- Chart - Has to be selected for Spline
Group: The Report Group is used if you need to group reports together. A Report Group will appear on the left pane, and once clicked, show the Reports in it below. They are collapsed when the App is first launched, and expandable as required.
Note: Report Groups will always display below non-grouped Reports.
Is Default: The default Report is the Report that the user will be directed to the first time that they open the App. If no default has been set then the user will be navigated to the Report with the lowest display order.
Note: Once a user navigates to a different Report, this preference will override the default option the next time they view the App if they haven't logged out in-between.
Is Hidden: This will hide the report from all users. It is commonly used whilst a Report is being reconfigured or if a Report needs to be removed temporarily to be reinstated at a later date.

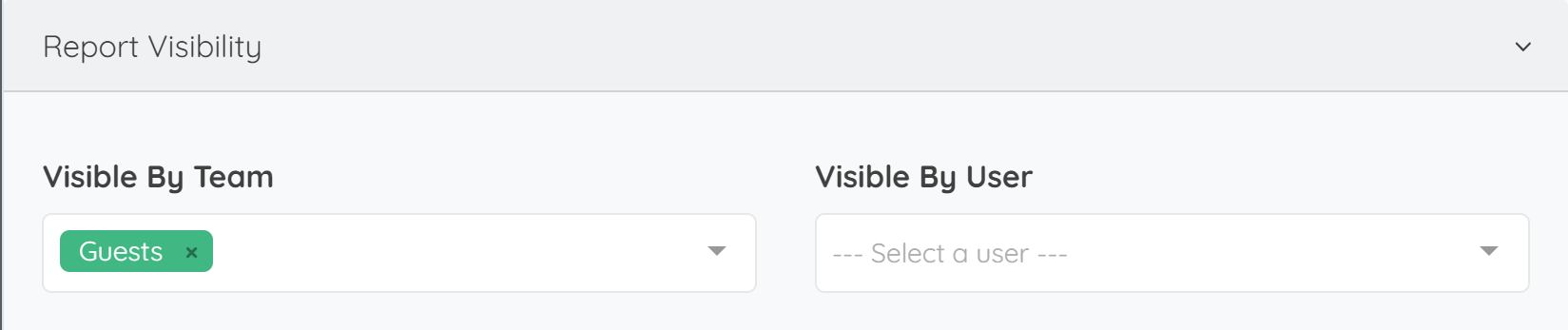

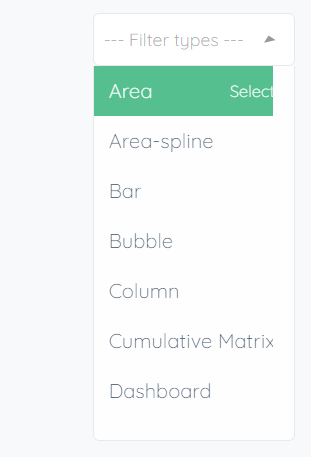

Chart Type: Choose from over 15 Chart Types - Here you will need to select 'spline'.

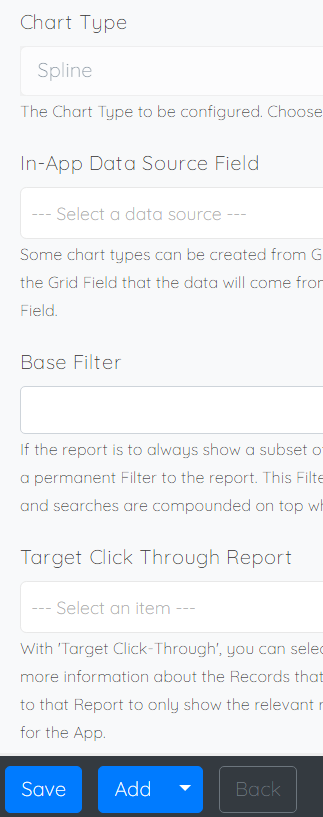

In-App Data Source Field: Some chart types can be created from Grid Field data to produce In-App Charts To select the Grid Field that the data will come from you can choose this as the In-App Data Source Field.
Background Image URI: This option allows you to have an image behind the Chart by entering its URI. This can be useful when indicating zones within the chart or simply for more tailored branding.
Base Filter: If the report is to always show a subset of Records, then the Base Filter can be used to apply a permanent Filter to the report. This Filter is always applied, and then user-defined filters and searches are compounded on top when the report is being used - For more about configuring base filters click here
Target Click-Through Report - With 'Target Click-Through', you can select a List Report for the user to drill down into to display more information about the Records that meet the criteria. It will apply the appropriate filters to that List Report to only show the relevant records. This can make an effective navigation tool for the App.

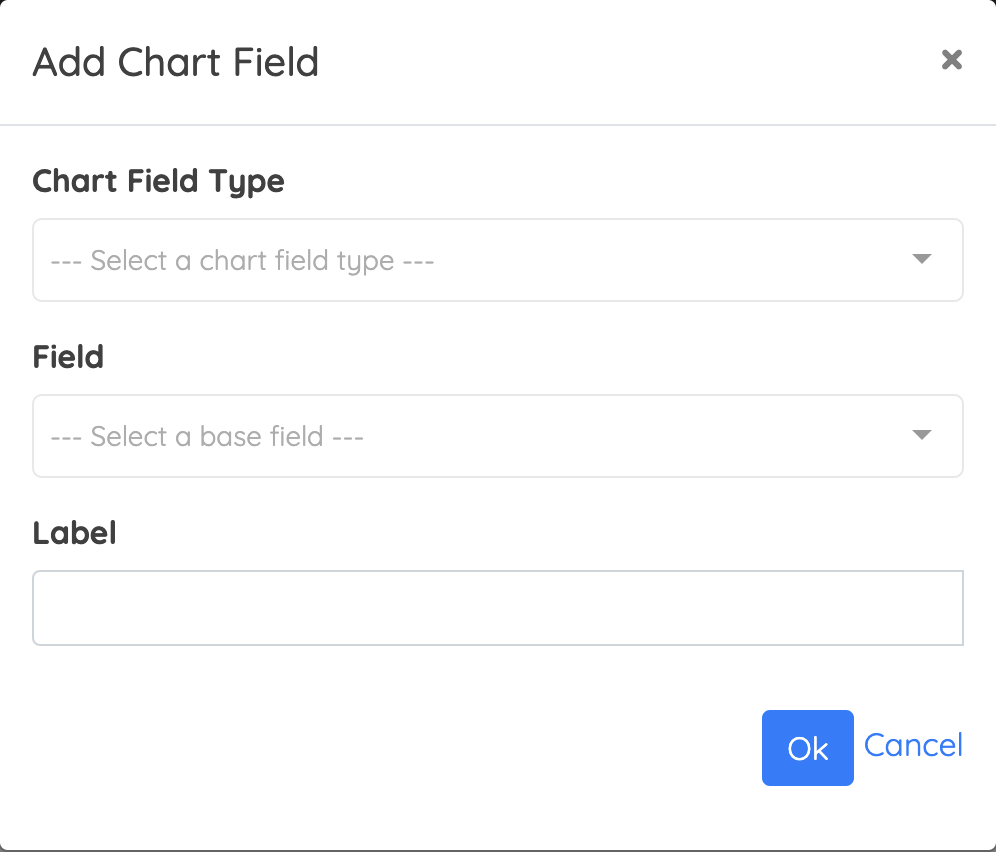

Chart Fields - Click the 'Add Chart Field' button to open the pane below and select the data (Fields) you want to use.
- Label: What to you want to call the series? This will be displayed next to the Spline Chart in the App.
- Chart Field Type: Choose from multiple options:
- X - The x variable
- Y- The y variable
- Label - The title text each data point will have
- Hover Text - The more descriptive text that the data points display when hovered over with the mouse
- Base Field: What In-App Field is being displayed as configured in the above options.
Once you have finished configuring, don't forget to click 'Save' to commit any changes.
